    CycloneDX + Dependency-Track provides 100% coverage of Rust production dependencies

    We conducted an analysis of CycloneDX and Dependency-Track toolchain support for the Rust language and ecosystem, with the following questions:

    1. How well is Rust supported by CycloneDX and Dependency-Track?
    2. Is there full coverage of all of a Rust project's dependencies?
    3. How easy is the integration of CycloneDX and Dependency-Track with the CI/CD pipeline?

    How well is Rust supported by CycloneDX and Dependency-Track?

    Rust is very well supported by the available tools, and provides 100% coverage of production dependencies. Development and build dependencies are not fully supported, which will be explained later in this analysis.

    This was tested by creating CycloneDX files of the following major Rust projects from source, and importing the CycloneDX file in Dependency-Track:

    I also created a custom project to test the CycloneDX build commands.

    https://github.com/VioletBeacon/violetbeacon_deptrack_testproject_rust_cargo

    The most reliable way to generate a CycloneDX BOM is with the following sequence:

    # Install cargo-cyclonedx (only needs to be run once)
$ cargo install cargo-cyclonedx

# Build CycloneDX file
$ ~/.cargo/bin/cargo-cyclonedx cyclonedx -f json --spec-version 1.5 \
--all --target all

    If the project includes multiple packages, you have a choice: You can either upload each BOM file individually to Dependency-Track as separate projects, or merge all the BOMs for the project together.

    To merge them together, you can use cyclonedx-cli:

    # Install the latest cyclonedx cli from https://github.com/CycloneDX/cyclonedx-cli
# Adjust the version number and path as desired (this is just an example)
$ sudo wget https://github.com/CycloneDX/cyclonedx-cli/releases/latest/download/cyclonedx-linux-x64 \
-O /usr/local/bin/cyclonedx

$ sudo chmod 0755 /usr/local/bin/cyclonedx

# Merge all .cdx.json files together
$ cyclonedx merge --input-files `find . -name "*.cdx.json"` \
--output-file [outputfile]

    To upload the BOM to Dependency-Track, you'll need an API Key.

    The API key is generated by:
    1. Logging into Dependency-Track and click on "Administration"
    2. Click on "Access Management"
    3. Click on "Teams"
    4. Click on the "BOM Uploader" team.
    5. Under "API Keys", click "+" (New API Key).

    The VioletBeacon Dependency-Track client makes uploading the BOM much easier than using the CURL commands that are documented in the Dependency-Track documentation.

    # Install the VioletBeacon Dependency-Track Client
$ pip install violetbeacon-deptrack-client

# 1. Set the DTRACK_APIKEY environment variable in your CI/CD environment
# 2. Set the DTRACK_BASEURL environment variable in your CI/CD environment

$ deptrack-client upload-bom -a -p [PROJECT] -q [VERSION] -f [bom.cdx.json]

    Is there full coverage of all of a Rust project's dependencies?

    Yes for production dependencies.

    If the dependency is a production dependency and listed in Cargo.toml, then it will get added to the CycloneDX file.

    If the dependency is a dev dependency, then it will not get added to the CycloneDX file.

    If the dependency is a transitive production dependency and is included in Cargo.lock during a 'cargo' operation (cargo build, etc.), then it will get added to the CycloneDX file.

    Build and dev dependencies currently do not get added to the CycloneDX file.

    If a dependency is not listed in the CycloneDX file, it will not be analysed by Dependency-Track.

    So, at this point, there is 100% coverage of Rust production dependencies, but 0% coverage of dev or build dependencies.

    In the violetbeacon_deptrack_testproject_rust_cargo GitHub repo is a concrete example that we created.

    This project includes futures-core, smallvec, tokio and idna as dependencies. We built the project and inspected which dependencies were downloaded. We then cleared the cargo cache and generated the CycloneDX BOM file and inspected which dependencies were downloaded and which were listed in the CycloneDX BOM. The results were compared and are included in the dependency_comparision.ods file in the repo.

    The sequence of commands that we ran is in the Makefile and can be run using make.

    Below are the results of the analysis. You'll notice that CycloneDX and Dependency-Track provides more complete coverage than cargo-tree. This is due to cargo cyclonedx being called with the --target all option, which includes all dependencies for all possible targets.

    Comparison of dependency auditing methods vs. Cargo.lock
    Cargo.lock crates CycloneDX output CycloneDX --all-features output Crates downloaded during CycloneDX run Crates downloaded during CycloneDX --all-features run CycloneDX default target CycloneDX default target crates downloaded CycloneDX --target all CycloneDX --target all downloads Crates downloaded during cargo build cargo tree CycloneDX --all-features in Dependency-Track
    addr2line ✅ ✅ ✅ ✅ ❌ ❌ ✅ ✅ ❌ ❌ ✅
    adler2 ✅ ✅ ✅ ✅ ❌ ❌ ✅ ✅ ❌ ❌ ✅
    autocfg ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅
    backtrace ✅ ✅ ✅ ✅ ❌ ❌ ✅ ✅ ❌ ❌ ✅
    bitflags ✅ ✅ ✅ ✅ ❌ ❌ ✅ ✅ ❌ ❌ ✅
    bytes ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅
    cfg-if ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅
    futures-core ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅
    gimli ✅ ✅ ✅ ✅ ❌ ❌ ✅ ✅ ❌ ❌ ✅
    hermit-abi ✅ ✅ ✅ ✅ ❌ ❌ ✅ ✅ ❌ ❌ ✅
    idna ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅
    libc ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅
    lock_api ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅
    memchr ✅ ✅ ✅ ✅ ❌ ❌ ✅ ✅ ❌ ❌ ✅
    miniz_oxide ✅ ✅ ✅ ✅ ❌ ❌ ✅ ✅ ❌ ❌ ✅
    mio ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅
    num_cpus ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅
    object ✅ ✅ ✅ ✅ ❌ ❌ ✅ ✅ ❌ ❌ ✅
    parking_lot ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅
    parking_lot_core ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅
    pin-project-lite ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅
    proc-macro2 ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅
    quote ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅
    redox_syscall ✅ ✅ ✅ ✅ ❌ ❌ ✅ ✅ ❌ ❌ ✅
    rustc-demangle ✅ ✅ ✅ ✅ ❌ ❌ ✅ ✅ ❌ ❌ ✅
    scopeguard ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅
    signal-hook-registry ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅
    smallvec ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅
    socket2 ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅
    syn ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅
    tinyvec ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅
    tinyvec_macros ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅
    tokio ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅
    tokio-macros ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅
    unicode-bidi ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅
    unicode-ident ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅
    unicode-normalization ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅
    violetbeacon_deptrack_testproject_rust_cargo ✅ ✅ ❌ ❌ ✅ ❌ ✅ ❌ ❌ ❌ ✅
    wasi ✅ ✅ ✅ ✅ ❌ ❌ ✅ ✅ ❌ ❌ ✅
    windows_aarch64_gnullvm ✅ ✅ ✅ ✅ ❌ ❌ ✅ ✅ ❌ ❌ ✅
    windows_aarch64_msvc ✅ ✅ ✅ ✅ ❌ ❌ ✅ ✅ ❌ ❌ ✅
    windows_i686_gnu ✅ ✅ ✅ ✅ ❌ ❌ ✅ ✅ ❌ ❌ ✅
    windows_i686_gnullvm ✅ ✅ ✅ ✅ ❌ ❌ ✅ ✅ ❌ ❌ ✅
    windows_i686_msvc ✅ ✅ ✅ ✅ ❌ ❌ ✅ ✅ ❌ ❌ ✅
    windows-sys ✅ ✅ ✅ ✅ ❌ ❌ ✅ ✅ ❌ ❌ ✅
    windows-targets ✅ ✅ ✅ ✅ ❌ ❌ ✅ ✅ ❌ ❌ ✅
    windows_x86_64_gnu ✅ ✅ ✅ ✅ ❌ ❌ ✅ ✅ ❌ ❌ ✅
    windows_x86_64_gnullvm ✅ ✅ ✅ ✅ ❌ ❌ ✅ ✅ ❌ ❌ ✅
    windows_x86_64_msvc ✅ ✅ ✅ ✅ ❌ ❌ ✅ ✅ ❌ ❌ ✅

    Comparison of Dependency-Track vs cargo audit & cargo update

    Dependency-Track looks up vulnerabilities from the following vulnerability databases, if they are enabled in the Dependency-Track configuration:

    cargo audit only retrieves advisories from the GitHub Advisory Database.

    With our test project, Dependency-Track identified:

    cargo audit identified the same vulnerability in idna 0.5.0 (CVE-2024-12224/RUSTSEC-2024-0421), and an INFO warning for tokio 1.31.0 (RUSTSEC-2025-0023).

    cargo update only identified redox_syscall for update.

    Vulnerabilities/Updates in Direct Dependencies
    Crate referenced in Cargo.lock Dependency-Track cargo audit cargo update
    futures-core 0.3.6 Upgrade to 0.3.31 - -
    idna 0.5.0 1 HIGH vuln, Upgrade to 1.0.3 Upgrade to >=1.0.0 -
    smallvec 1.6.1 Upgrade to 1.15.1 - -
    tokio 1.31.0 Upgrade to 1.46.1 Info only. No solution. -
    Vulnerabilities/Updates in Transitive Dependencies
    Crate referenced in Cargo.lock Dependency-Track cargo audit cargo update
    addr2line 0.24.2 Upgrade to 0.25.0 - -
    futures-core 0.3.6 Upgrade to 0.3.31 - -
    gimli 0.31.1 Upgrade to 0.32.0 - -
    mio 0.8.11 Upgrade to 1.0.4 - -
    object 0.36.7 Upgrade to 0.37.1 - -
    redox_syscall 0.5.13 Upgrade to 0.5.15 - Upgrade to 0.5.15
    socket2 0.5.10 Upgrade to 0.6.0 - -
    tokio-macros 2.1.0 Upgrade to 2.5.0 - -
    windows_aarch64_gnullvm 0.52.6 Upgrade to 0.53.0 - -
    windows_aarch64_gnullvm 0.48.5 Upgrade to 0.53.0 - -
    windows_aarch64_msvc 0.52.6 Upgrade to 0.53.0 - -
    windows_aarch64_msvc 0.48.5 Upgrade to 0.53.0 - -
    windows_i686_gnu 0.52.6 Upgrade to 0.53.0 - -
    windows_i686_gnu 0.48.5 Upgrade to 0.53.0 - -
    windows_i686_gnullvm 0.48.5 Upgrade to 0.53.0 - -
    windows_i686_msvc 0.52.6 Upgrade to 0.53.0 - -
    windows_i686_msvc 0.48.5 Upgrade to 0.53.0 - -
    windows-sys 0.52.6 Upgrade to 0.60.2 - -
    windows-sys 0.48.5 Upgrade to 0.60.2 - -
    windows-targets 0.52.0 Upgrade to 0.53.2 - -
    windows-targets 0.48.5 Upgrade to 0.53.2 - -
    windows_x86_64_gnu 0.52.6 Upgrade to 0.53.0 - -
    windows_x86_64_gnu 0.48.5 Upgrade to 0.53.0 - -
    windows_x86_64_gnullvm 0.52.6 Upgrade to 0.53.0 - -
    windows_x86_64_gnullvm 0.48.5 Upgrade to 0.53.0 - -
    windows_x86_64_msvc 0.52.6 Upgrade to 0.53.0 - -
    windows_x86_64_msvc 0.48.5 Upgrade to 0.53.0 - -

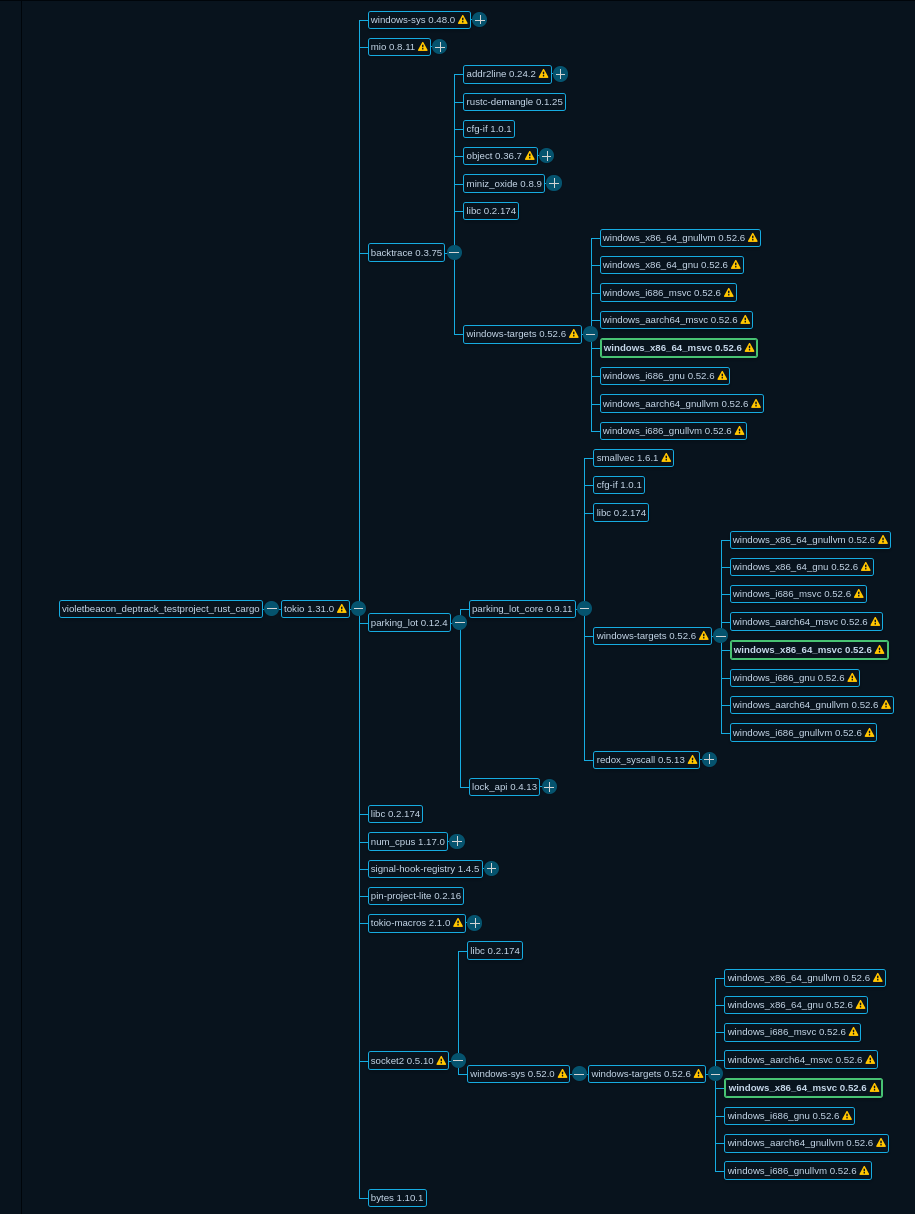

    Note: The windows* dependencies which are shown in the CycloneDX BOM and Dependency-Track but not in cargo audit/update are transitive production dependencies that are referenced in multiple crates. As an example, windows_x86_64_msvc is highlighted in green in the screenshot below.

    Dependency tree in Dependency-Track showing windows* dependencies

    Integration with CI/CD pipelines

    Using the VioletBeacon Dependency-Track Client makes integration with CI/CD pipelines simple by following these steps:

    1. The following environment variables must be set in the pipeline:

    2. Shell command-based integration can be done with the following steps:

    # Build SBOM
$ cargo install cargo-cyclonedx
$ ~/.cargo/bin/cargo-cyclonedx cyclonedx -f json --spec-version 1.5 \
--all --target all

# Upload SBOM
$ pip install violetbeacon-deptrack-client
$ deptrack-client upload-bom -a -p [PROJECT] -q [VERSION] \
-f [bom.cdx.json]

    An error in cargo-cyclonedx or deptrack-client will return a non-zero result.

    If any quality gates are desired, these can be implemented via the Dependency-Track API or using Rust's cargo audit.
